Universal Testing Machine with 800mm Tensile Stroke 390mm Testing Width and Two-Year Warranty for Foam IFD Hardness Testing

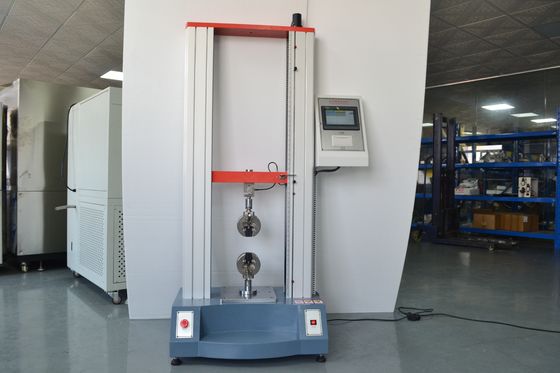

Grote Afbeelding : Universal Testing Machine with 800mm Tensile Stroke 390mm Testing Width and Two-Year Warranty for Foam IFD Hardness Testing

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	ZL
Modelnummer:	ZL-8001

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1

Contact

Gedetailleerde productomschrijving

Maximale lading:	5KN, 10KN, 20KN, kan worden aangepast	Effectief meetbereik:	0.2%~100% (1grade)/0.4%~100% (0,5 Rang)
Het meten van nauwkeurigheid:	Toon de waarde ±1%/Display value±0.5%	Tester resolutie:	Maximum lading 1/200000
Efficiënte Testende Breedte:	390 mm	Efficiënte Trekslag:	800mm;1000mm;1200mm
Waaier van het Testen van Snelheid:	0.001~200mm/min; 500mm/min (1000mm/min is Optie)	Nauwkeurigheid van Verplaatsingsmeting:	Tolerantie: ±0.5%/tolerantie: ±0.2%
Vervorming gemeten systeem:	Minimale overspanning: 10 mm, maximaal vervormingsbereik: 800 mm	Nauwkeurigheid van gemeten vervorming:	Tolerantie: ±0,5%
Overbelasting bescherming:	Overbelasting 10%, automatische bescherming	Machinegrootte:	80x55x220cm (lengtebreedtehoogte)
Stroomvoorziening:	220V, 50Hz	Stroom:	0,4 kW
Machinegewicht:	250 kg
Markeren:	800mm Tensile Stroke Universal Testing Machine , 390mm Testing Width Universal Testing Machine , Two-Year Warranty Foam IFD Hardness Tester

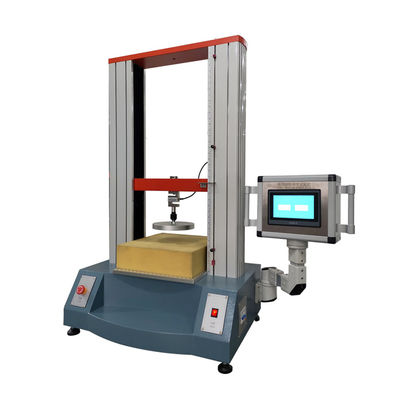

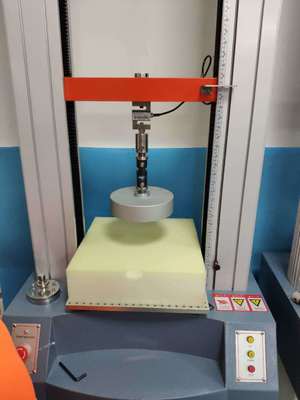

Mattress Foam IFD Hardness Tester Universal Tensile Strength Testing Equipment

Main Functions:

This testing machine is designed for evaluating flexible materials with large deformation, including rubber, plastics, leather and similar materials. It performs tensile, tear, adhesive strength, peel and other tests, equipped with a large deformation extensometer for precise specimen measurement.

Applicable Industries:

Widely used in quality control across multiple sectors including rubber & plastics, metallurgy, manufacturing, electronics, automotive, textiles, packaging materials, food processing, instrumentation, medical equipment, civil nuclear energy, aviation, academic research, technical supervision, building materials, ceramics, and petroleum/chemical industries.

Corresponding Standard:

GB/T16491-1996 electronic universal testing machine

Technical Specifications

Model	ZL-8001 Computer Servo Universal Tensile Strength Testing Machine
Max load	5KN,10KN, 20KN, Can be customized
Accurate grade	1 % /0.5 %
Effective measuring range	0.2%~100%(1grade)/0.4%~100%(0.5 grade)
Measuring accuracy	Display the value ±1%/Display the value±0.5%
Tester resolution	Max load 1/200000, regardless of inside and outside, constant the resolution
Load sensor	Basic configuration: sensor(max load): one. Extended configuration: can add more sensors
Effective testing width	390mm (can be widened according to customer's requirement)
Effective Tensile stroke	800mm;1000mm;1200mm (can be increased the height according to customer's requirement)
Range of testing speed	0.001~200mm/min; 500mm/min (1000mm/min is option)
Accuracy of displacement measurement	Tolerance: ±0.5%/ tolerance: ±0.2%
Deformation of measured system	Min span: 10mm, Max range of deformation: 800mm. Extended deformation: Min span: 25mm,50mm,100mm, range of deformation: 5mm,10mm,25mm
Accuracy of measured deformation	Tolerance: ±0.5% (according to requirement of customer to choose the larger or small deformation)
Safety	Electronic-limit protection
Testing platform moving device	Fast/slow two speeds to control, can jog
Return back	Manual or automatic operation. After the test, the moving iron returns to initial position with the highest speed by manual or automatic operation
Overload protection	Overload 10%, automatic protection
Fixture	A set of tensile fixture
Machine size	80x55x220cm (lengthwidthheight)
Power system	Panasonic AC Servo Motor + Driver + high-precision ball screw
Power supply	220V, 50HZ
Power	0.4KW (depending on different demand of force, using different motor)
Machine weight	(about) 250 Kg
Units	Kg, N, LB, TON, can be exchanged

Equipment Summary

The Electronic Universal Tensile Test Equipment combines electronic technology with mechanical transmission for accurate load speed and force measurement. It features high accuracy and sensitivity for load, displacement measurement and control, capable of constant-velocity loading and displacement testing. Simple to operate, it's ideal for production line quality control, primarily used for testing non-metallic and metallic materials with loads less than 2 tons.

Testable Items in Computer Servo Testing Machine

Tensile stress
Tensile strength
Rate of elongation at break
Fixed stress
Rate of stress at break
Stress strength
Tear strength
The value of force at any point
Rate of elongation at any point
Pull-out strength
Force of adhesion and the peak of force

Main Features

Features photoelectric encoder for displacement measurement, embedded single-chip microcomputer controller with multifunction software combining measurement, control, calculation and storage. Automatically calculates stress, elongation rate (with extensometers), tensile strength, elastic modulus, and statistical results. Records maximum points, breaking points, and designated values. Computer displays dynamic testing curves and processes data, with post-test analysis capabilities including curve magnification, report printing, and data editing.

Software Features

Standard modular function covering GB, ASTM, DIN, JIS, BS testing standards
Product information database with formula-based automatic correction
Dual-Report Editor with customizable formats (testing program + EXCEL)
Convertible units for length and force measurements
Auto-optimized graphic scale with multiple display modes
EXCEL format output capability
Automatic/manual result preservation with comprehensive calculation capabilities
Historical data output functionality

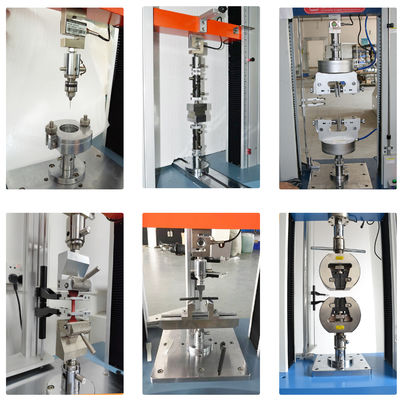

Fixture Accessories Customization
